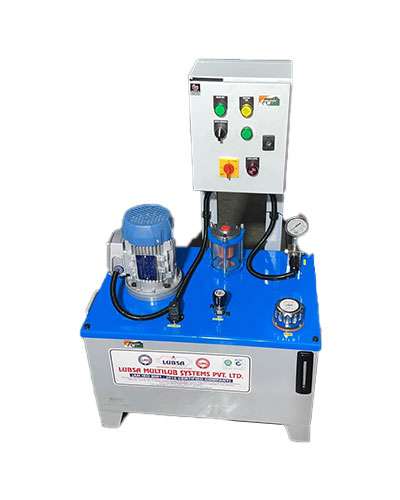

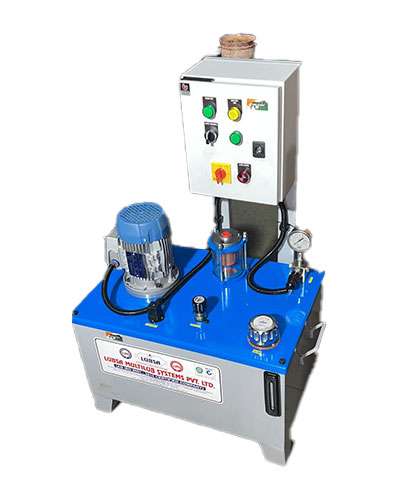

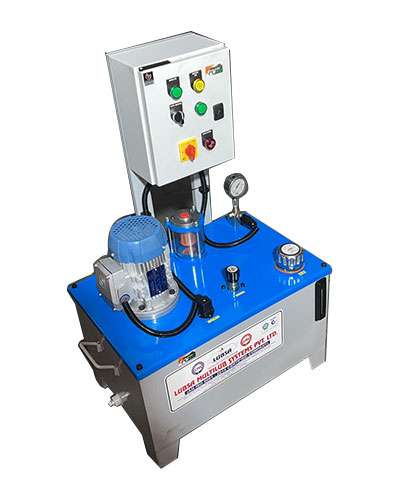

OIL RECIRCULATING SYSTEMS

Lubsa’s oil recirculation system supplier is designed to continuously supply, filter, and cool lubricating oil in industrial machinery. It ensures optimal lubrication, reduces wear, and maintains oil cleanliness. Ideal for heavy-duty applications, this system enhances equipment performance, reliability, and extends the overall service life of components. These systems are recirculatory type, where oil is recirculated in a closed circuit to save costly oil. It supplies a continuously desired quantity of properly conditioned, filtered cool oil to an individual or group of points. Lube oil systems are designed and manufactured as per standards and customers’ specifications. Lubsa’s oil circulation system pump ensures continuous flow and filtration of lubricating oil, maintaining optimal temperature and cleanliness for smooth, efficient operation of industrial machinery.

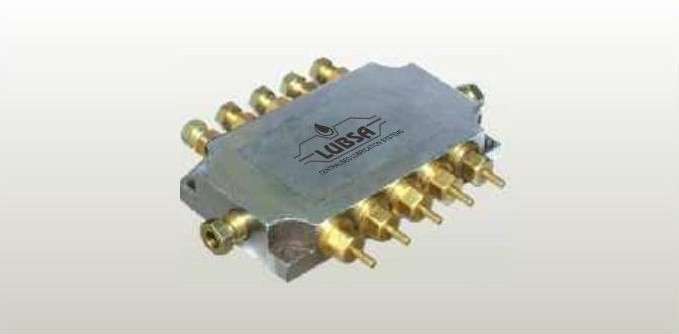

TAKE OFF METERING INJECTOR

TAKE OFF metering injector works on a different principle than the normal metering injectors. Normal metering injector discharge the oil at the ON position of pump. The TAKE OFF injector gets charged at the ON position of pump and the spring loaded piston (indicator pin) ejects out. This injector discharges the oil at the OFF condition of pump and the spring loaded piston (indicator pin) will go back. A non return valve has been provided at each injectors to retain the oil in the injectors. It is available in the different dosages and can be supplied as per customers’ requirement.

Working Pressure: 5 to 30 Kg/Cm², Viscosity of oil: 20-500cst.

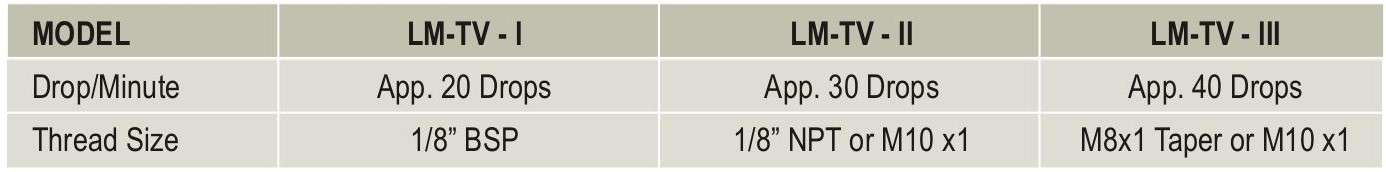

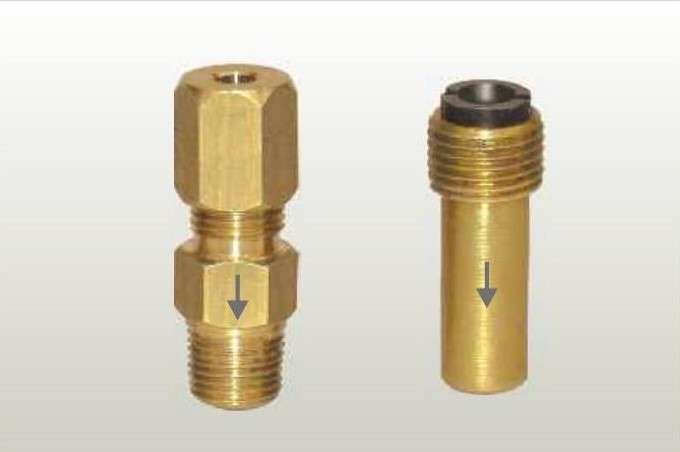

THROTTLE VALVE

These valves have been designed to discharge the oil continuously drop by drop under low pressure of 2-4 kg/cm². The efficiency of these valves depends upon the purity of the oil and the viscosity of the oil. The viscosity of oil should not be more than 68 CST. These valves can be operated with a motorised/pneumatic / manual pump. These valves are available in different input thread sizes i.e. 1/8” B.S.P., 1/8” N.P.T., M8x1 taper, etc. and the outlet is suitable for a 4mm OD tube.

Steam, gas, and water turbines
Gearboxes
Heavy duty motors
Industrial fans
Boiler feed descaler pumps
Compressors
Cement plants raw mills, coal mill
Cement mill powerhousee equipment
Ball and tube mill
Paper plant machinery
Sugar plant machinery
Steel plant- rolling mill, wire, and rod mill morgoil systems.
Any other machinery which requcontinuousinues oil lubrication.

System are custom built, tailor made, packaged unit skid mounted, ready for installation and piping to parent machine, in simplex as well as duplex arrangements. Fabricated oil tank to hold equired quantity of oil with accessories i.e. Mainhole, breather cum filler, oil level indicators, level witches for level control, baffles, drain valve, heater etc.
Rotary gear, screw or centrifugal type pumps with built in relief valve, connected with electric motor. Filters of basket, self cleaning type, micron rating 10 micron onward depend on application. Material of element S.S wiremesh, paper, felt, fibre etc
Oil cooler to cool oil, horizontal or vertical, shell and tube type, plate type etc.
nstrument panel consisting of pressure gauges, pressure switches, temperature gauges, temperature switches, RTD, flow switch, level switches, etc to keep control of the different parameters.
Control panel is designed for higher degree of sophistications to control above, parameters and automatic changeover of pump, oil coolers, filters, change of flow path.
Various valve are incorporated, check valve, gate, globe, ball, plug, relief valve, pressure control valve etc.
Material of construction have various combination depending on end use, environment, pressure, temperature etc.
