MANIFOLDS, HOSES AND TUBES

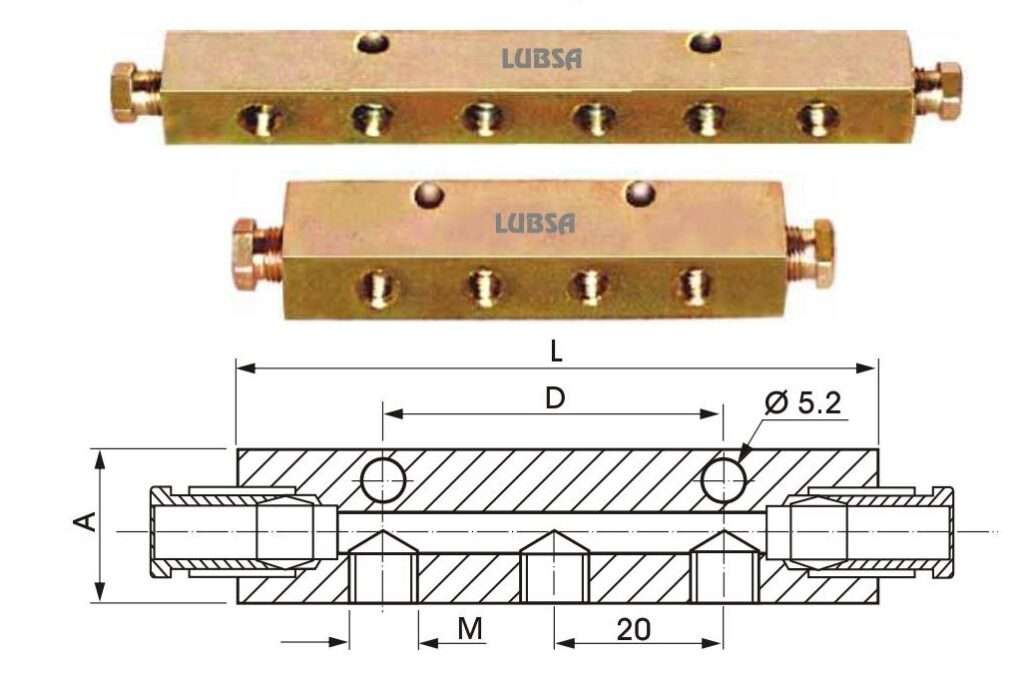

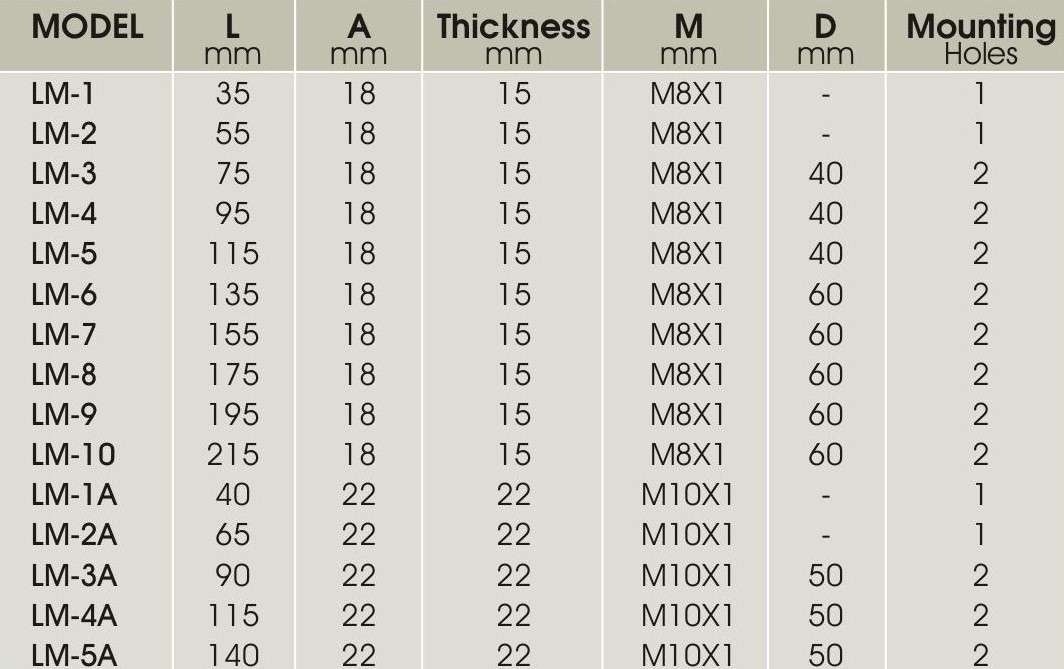

Manifolds are required for mounting oil distributors. These have two ports of 6mm OD tube and a few side outlets. Oil distributors are screwed directly on the side outlets of manifolds.
Download Brochure Send Enquiry
Manifolds are required for mounting oil distributors. These have two ports of 6mm OD tube and a few side outlets. Oil distributors are screwed directly on the side outlets of manifolds.

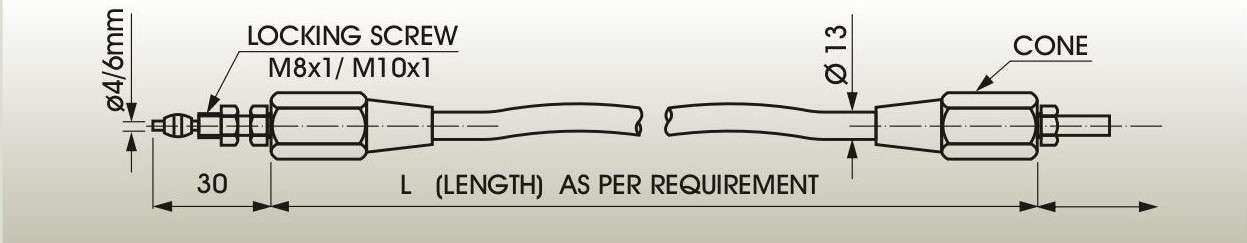

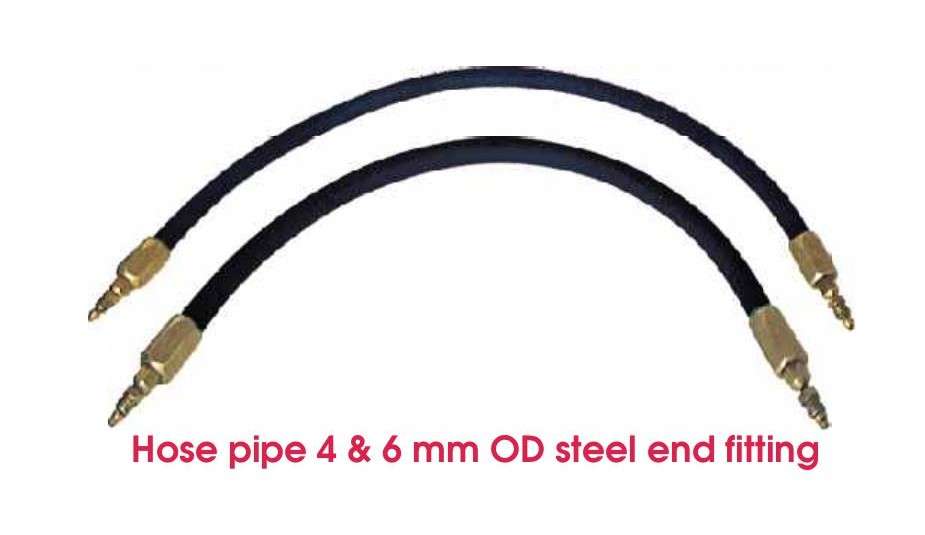

Download Brochure Send EnquiryHoses are used to connect points where flexibility is a must and also mechanical strength required. These hoses are available with 4mm and 6mm steel end fittings with working pressure of 28 Kg/cm² to 200 Kg/cm². OD of these hoses is 13mm and ID of 6.3 mm. The length of hose pipes can be supplied as per costumer requirement.

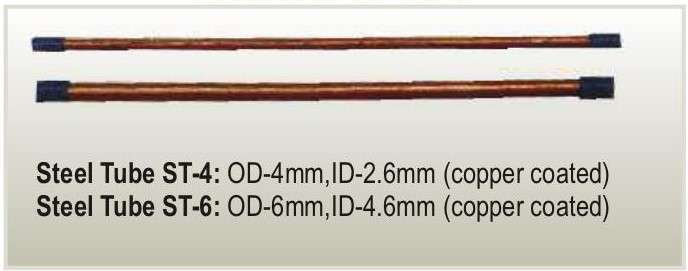

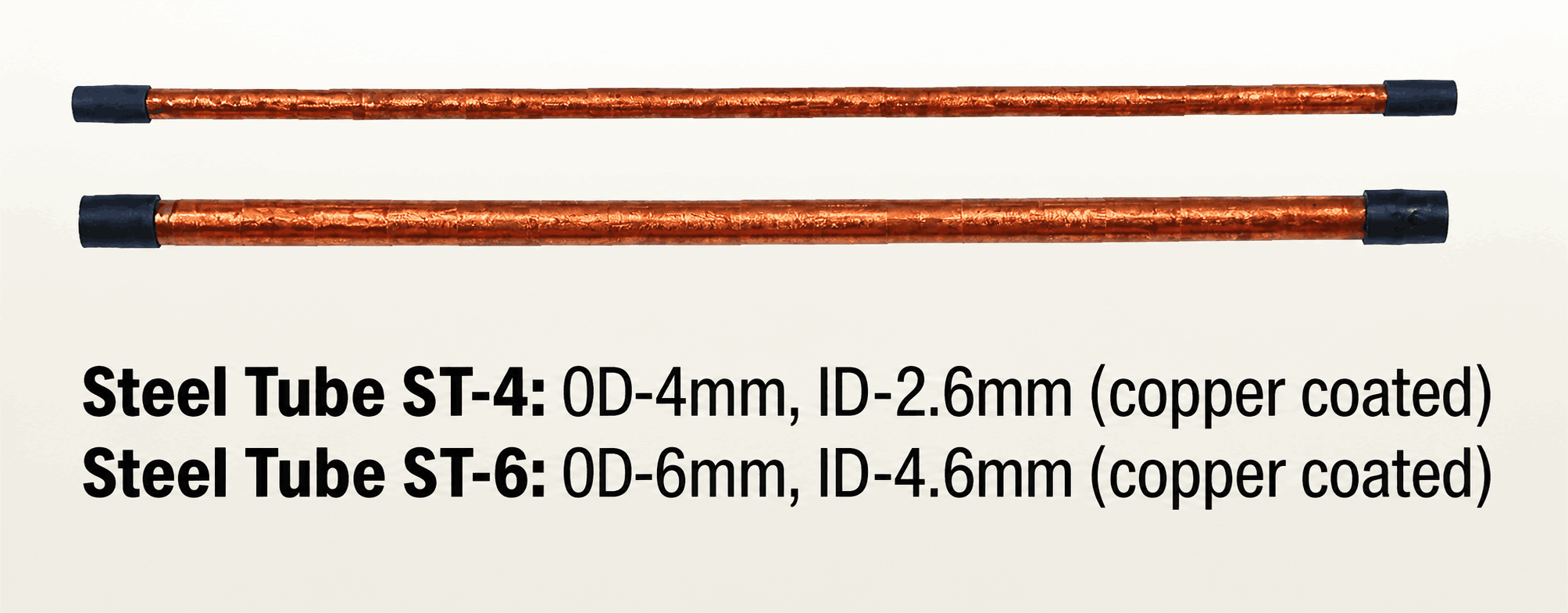

Steel Tube:- These are copper coated welded with a thickness of 0.7mm. A 6mm OD tube was used as the main line & 4mm OD tube was used as a secondary line.

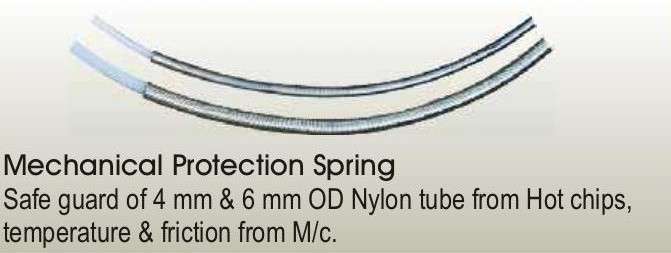

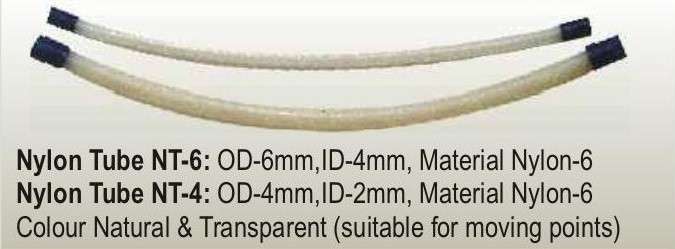

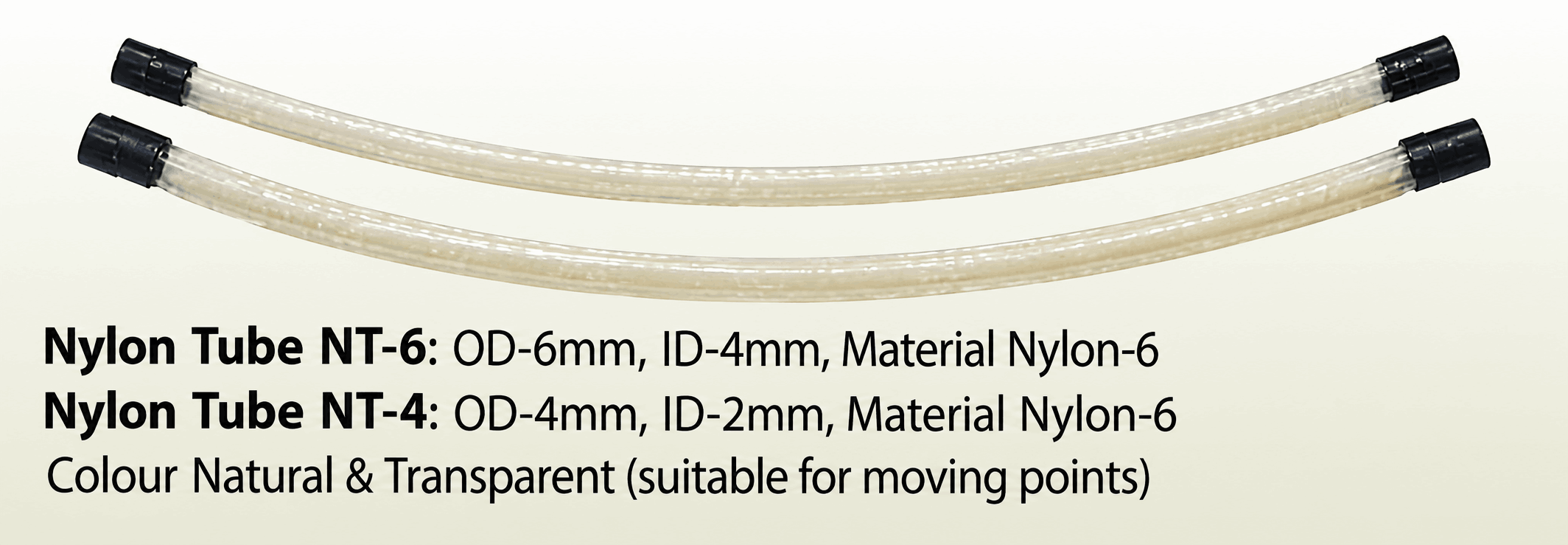

Nylon Tube:- These are semi-transparent flexible tubes of material nylon 6. These tubes are used where the lubrication point is movable.
